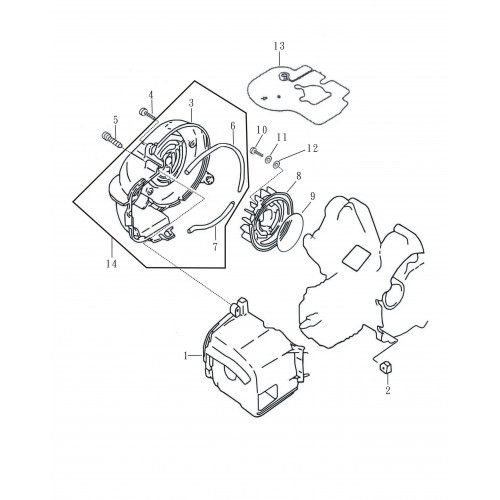

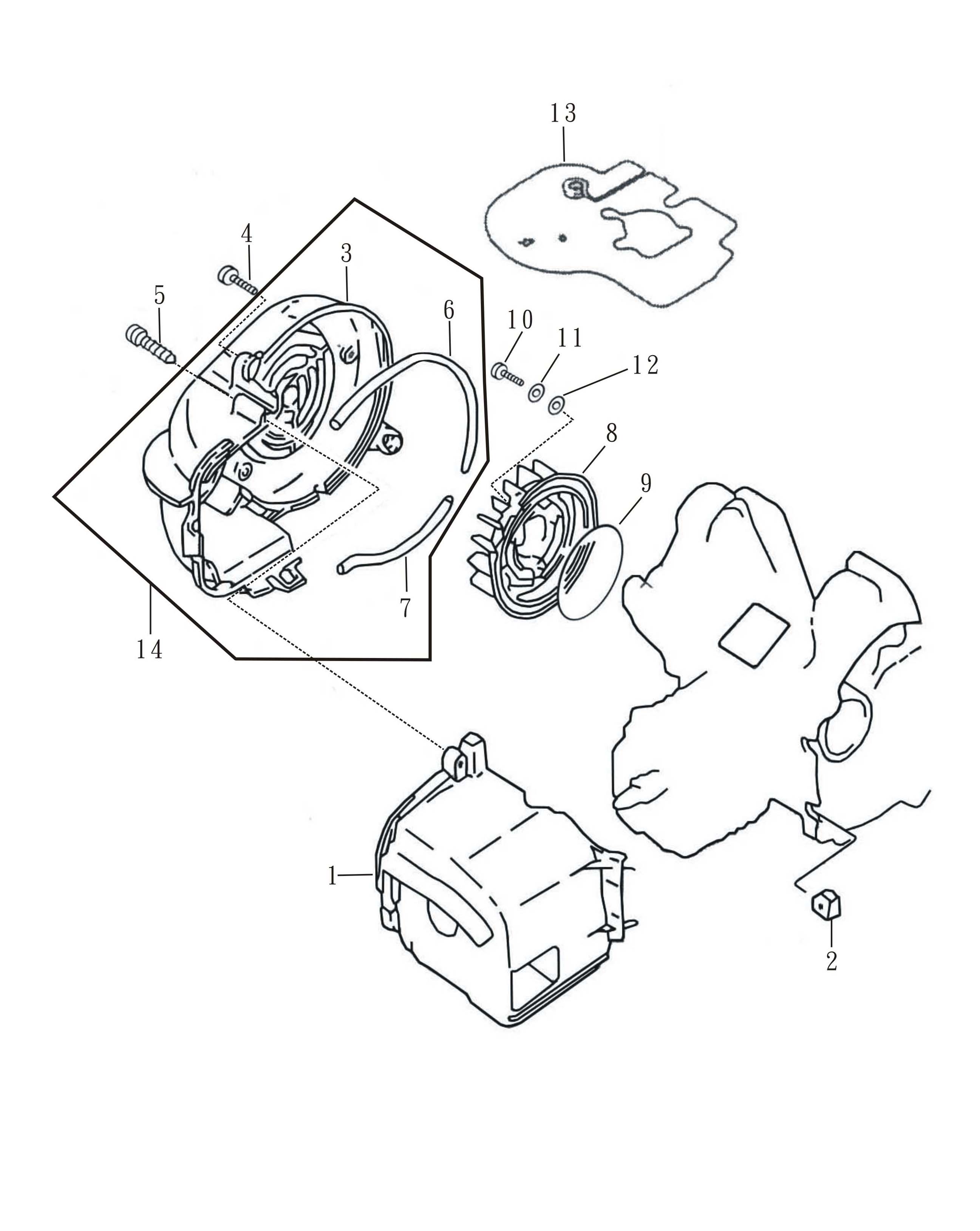

Fan Air Shroud
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
SHROUD COMP.
M2A-17140-00-00
|
|||
| 2 |
SHROUD GROMMET
M1A-17143-00-00
|
|||
| 3 |
FAN COVER COMP.
M1A-17111-00-00
|
|||
| 4 |
FLANGE SCREW M6X20
96001-06020-01
|
|||
| 5 |
TAPPING SCREW 6X40
93911-06040-01
|
|||
| 6 |
SHROUD DAMPER A
M1A-17115-00-00
|
|||
| 7 |
SHROUD DAMPER B
M1A-17117-00-00
|
|||
| 8 |
COOLING FAN COMP.90cc
M2A-17161-00-00
|
|||
| 9 |
O-RING 64.4X3.1
91305-31644-00
|
|||
| 10 |
PAN HEAD SCREW 6X16
93500-06016-03
|
|||
| 11 |
SPRING WASHER 6MM
94111-06103-00
|
|||
| 12 |
SEALING WASHER 6MM
94101-06113-03
|
|||
| 13 |
DEFLECTOR
M1A-17151-00-00
|
|||
| 14 |
FAN COVER ASSY.
M1A-17110-00-00
|
