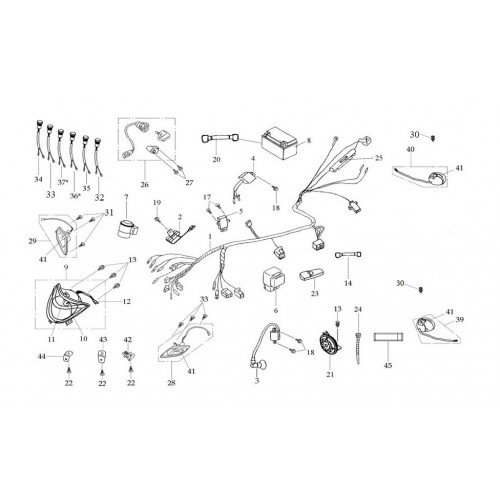

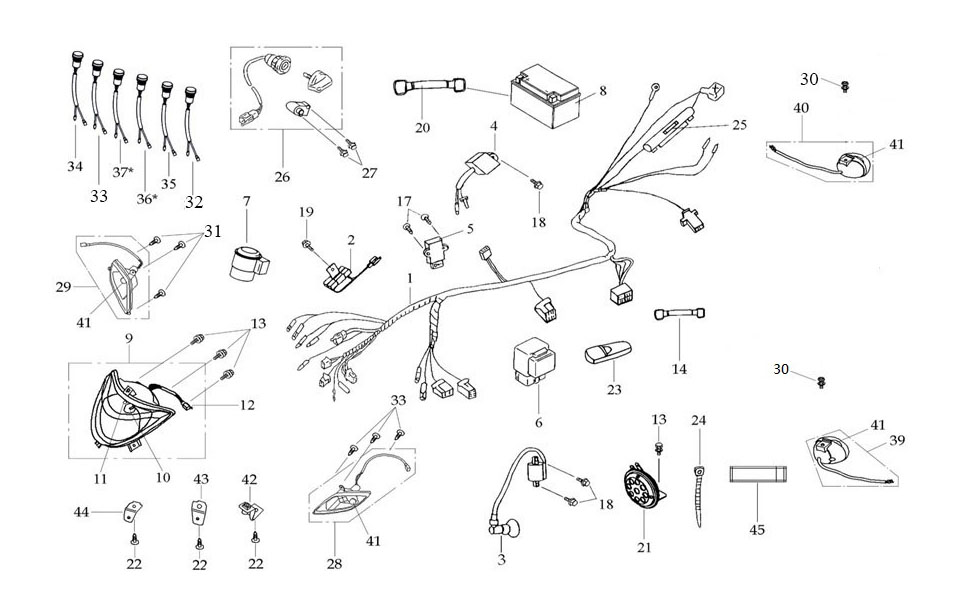

Electrical Parts
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
WIRE HARNESS ASSY.
A10A-336100-N0000
|
|||
| 2 |
RESISTOR COMP.
A1A-38410-00-00
|
|||
| 3 |
INGNITION COIL ASSY.
M1A-33140-00-00
|
|||
| 4 |
C.D.I ASSY.
M2A-33110-00-00
|
|||
| 5 |
REG. REC. COMP.
M1A-31310-00-00
|
|||
| 6 |
STARTER RELAY ASSY.
M1A-38310-00-00
|
|||
| 7 |
FLASHER RELAY (10X2+3.4W)
A10A-38110-00-00
|
|||
| 7-1 |
FLASHER RELAY (12.8V85C/M) LED
A10B-38110-00-00
|
|||
| 8 |
BATTERY ASSY.( 7A )
A10A-334200-N0000
|
|||
| 9 |
HEAD LIGHT
AMX-F030082-00
|
|||
| 10 |
BULB ( 12V/35W)
AMX-A180054-00
|
|||
| 11 |
BULB ( 12V/5W)
AMX-A180049-00
|
|||
| 12 |
HEAD LIGHT MAIN WIRE
AMX-F030033-00
|
|||
| 13 |
HEX BOLT M6X16
AMX-A050023-41
|
|||
| 17 |
PAN HEAD SCREW M5X14
93500-05014-03
|
|||
| 18 |
SCREW W/WASHER M6X20
93891-06020-04
|
|||
| 20 |
RUBBER BAND
A10A-334910-N0000
|
|||
| 21 |
HORN
A1A-38210-00-00
|
|||
| 22 |
TAPPING SCREW M5X12
93914-05012-02
|
|||
| 23 |
TOOL KIT
AMXA1A-81110-00-10
|
