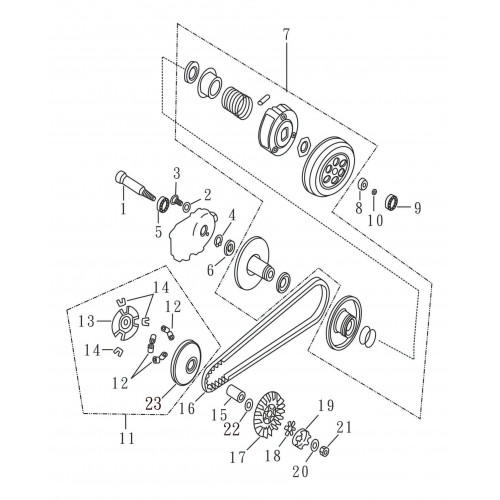

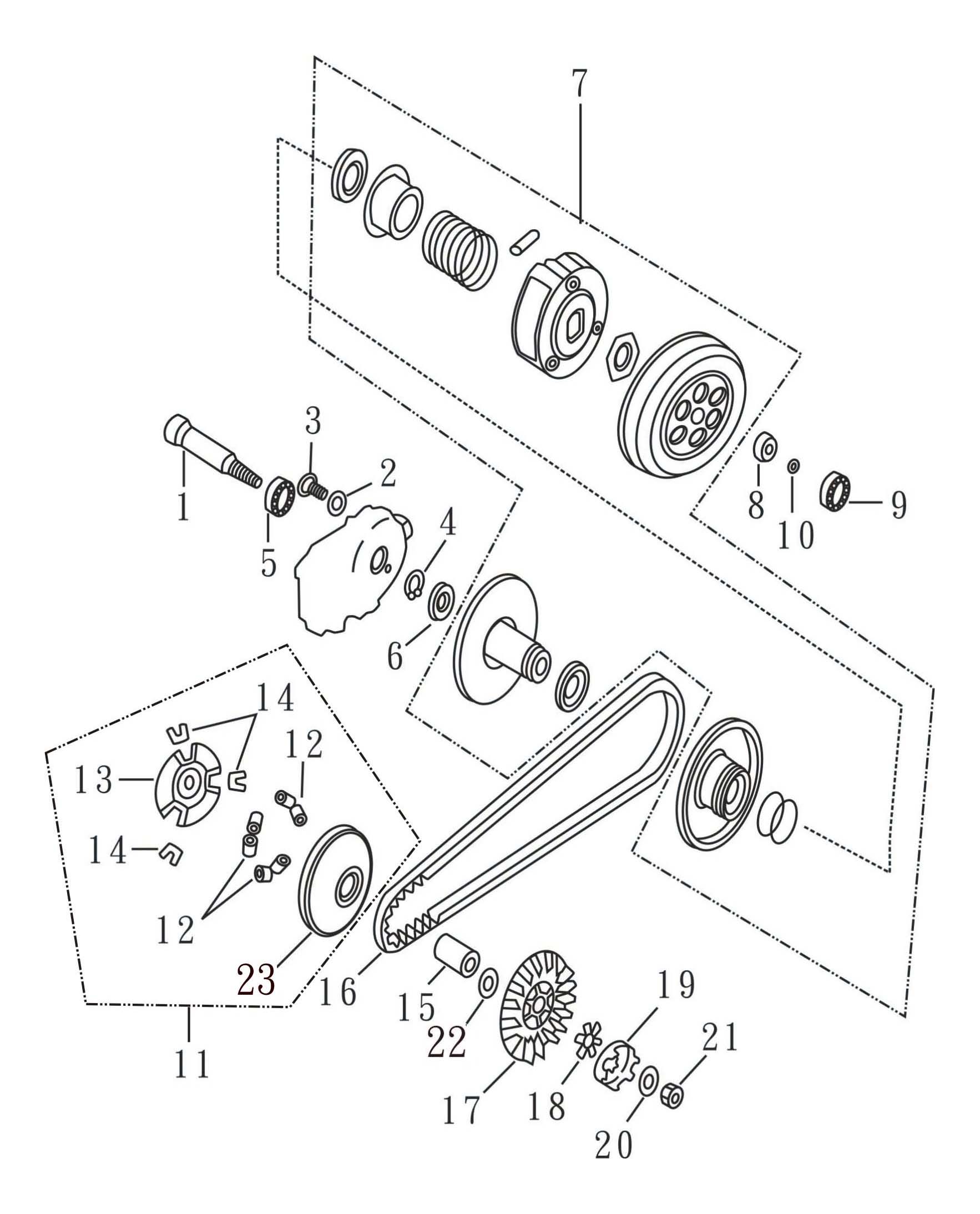

Clutch
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
DRIVE SHAFT
M2A-25111-00-00
|
|||
| 2 |
PLATE WASHER 6MM
94101-06193-00
|
|||
| 3 |
PAN HEAD SCREW 6X10
93500-06010-03
|
|||
| 4 |
CIR-CLIP 17MM
94511-10170-00
|
|||
| 5 |
BALL BEARING 6003CS14
96129-06003-00
|
|||
| 6 |
OIL SEAL 17X28X5.5
91235-17028-55
|
|||
| 7 |
DRIVEN PULLEY ASSY.
M2A-22400-00-10
|
|||
| 8 |
FLANGE NUT 10MM
94011-10000-04
|
|||
| 9 |
BALL BEARING 638Z
96120-00638-20
|
|||
| 10 |
O-RING 6.45X3.1
91305-31065-00
|
|||
| 11 |
MOVABLE DRIVE FACE ASSY.
M2A-22100-00-01
|
|||
| 12 |
WEIGHT ROLLER COMP.
M2A-22121-00-00
|
|||
| 13 |
RAMP PLATE
M1A-22123-00-00
|
|||
| 14 |
SLIDE PIECE
M1A-22124-00-00
|
|||
| 15 |
DRIVE FACE BOSS
M2A-22133-00-00
|
|||
| 16 |
DRIVE BELT
M2A-22211-00-10
|
|||
| 17 |
DRIVE FACE
M2A-22131-00-00
|
|||
| 18 |
CLAW WASHER
M2A-22136-00-00
|
|||
| 19 |
KICK RATACHET
M2A-27261-00-00
|
|||
| 20 |
CONICAL SPRING WASHER 10M
94102-10246-00
|
