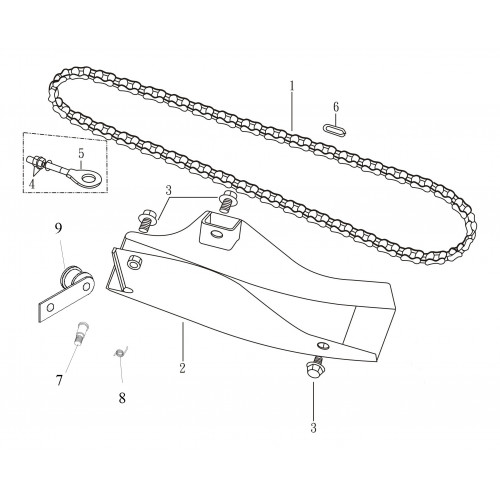

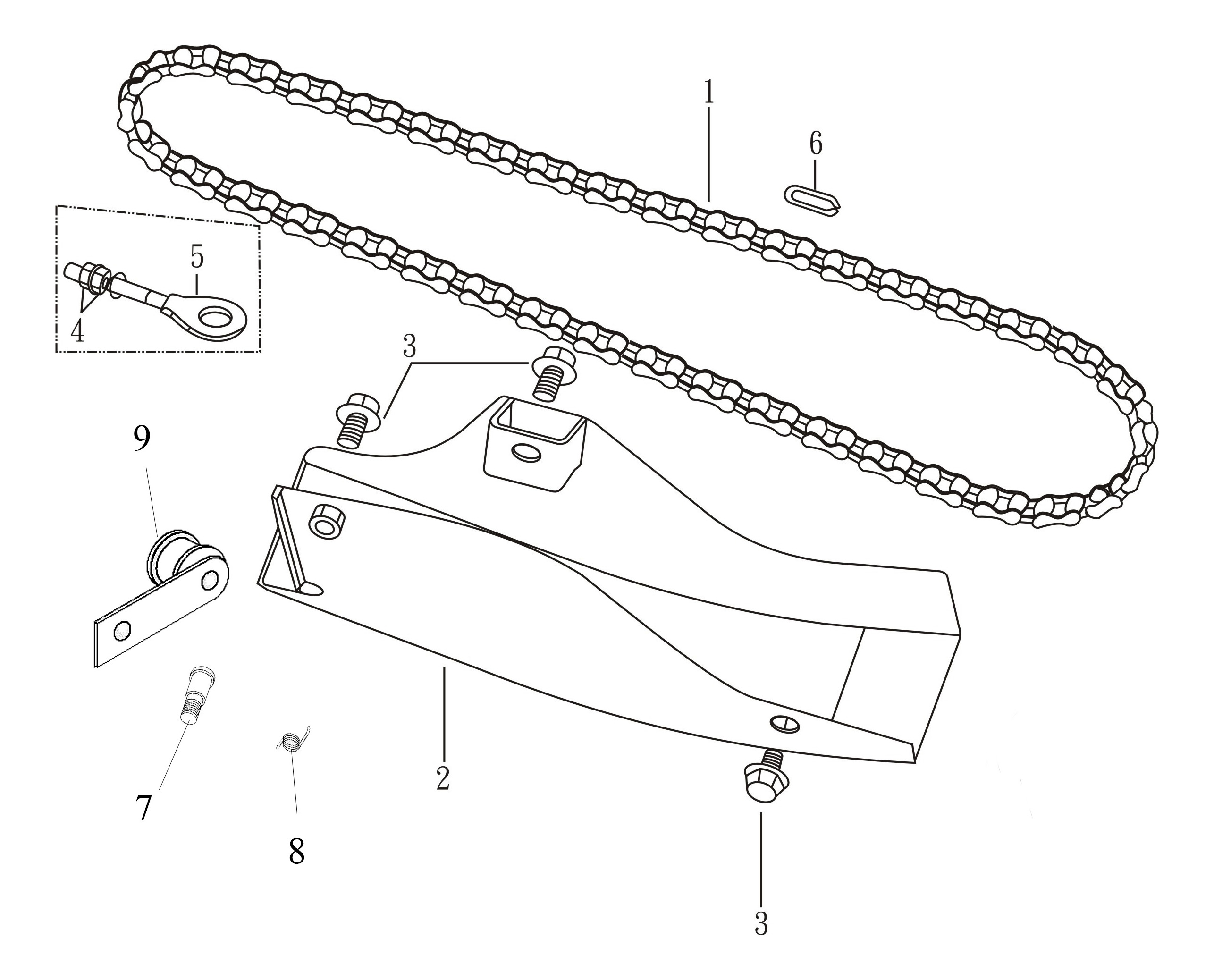

Chain
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
DRIVE CHAIN 428HX86
A1A-26960-00-10
|
|||
| 2 |
CHAIN CASE,1
A1A-26941-00-00
|
|||
| 3 |
FLANGE BOLT 8X12
95800-08012-02
|
|||
| 4 |
HEX. NUT 8MM
94001-08000-01
|
|||
| 5 |
CHAIN ADJUSTER
A4A-56471-00-00
|
|||
| 6 |
CHAIN LOCK
A1A-26963-00-00
|
|||
| 7 |
BOLT FOR CHAIN SUPPORTER
A10A-269701-N0000
|
|||
| 8 |
SPRING
A10A-269720-N0000
|
|||
| 9 |
CHAIN SUPPORTER
A10A-269700-N0000
|
