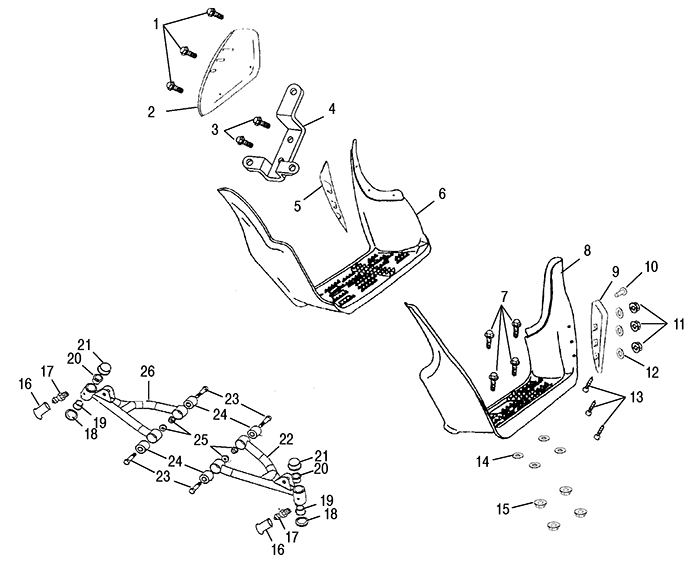

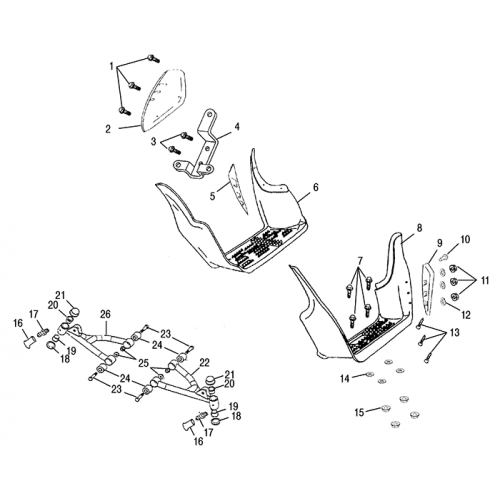

Swing Arm | Footrest
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Bolt, Hex, Washer Face
450701
|
$1.59 | ||
| 2 |
Shield, Heat
450611
|
|||
| 3 |
Bolt, Hex
450298
|
$2.19 | ||
| 4 |
Support, Heat Shield
450612
|
|||
| 5 |
Mudflap, Rh
450610
|
|||
| 6 |
Footrest, Lh
450607
|
|||
| 7 |
Bolt, Hex
450340
|
$1.55 | ||
| 8 |
Footrest, Rh
450608
|
|||
| 9 |
Mudflap, Lh
450609
|
|||
| 10 |
Screw, Tapping
450676
|
|||
| 11 |
Nut, Lock
450823
|
|||
| 12 |
Washer, Plain
450743
|
|||
| 13 |
Bolt, Phillips
450822
|
|||
| 14 |
Washer, Plain
450879
|
|||
| 15 |
Nut, Lock
450808
|
|||
| 16 |
Cap, Rubber
450321
|
|||
| 17 |
Valve, Grease
450320
|
|||
| 18 |
Rubber, Dustproof
450317
|
|||
| 19 |
Seat, Grease Contain
450314
|
|||
| 20 |
Seat, Grease Contain
450313
|
