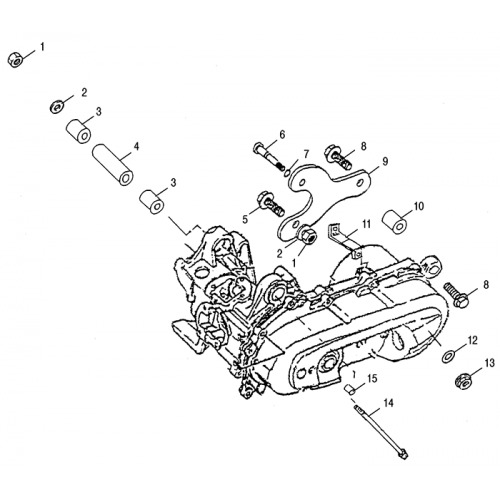

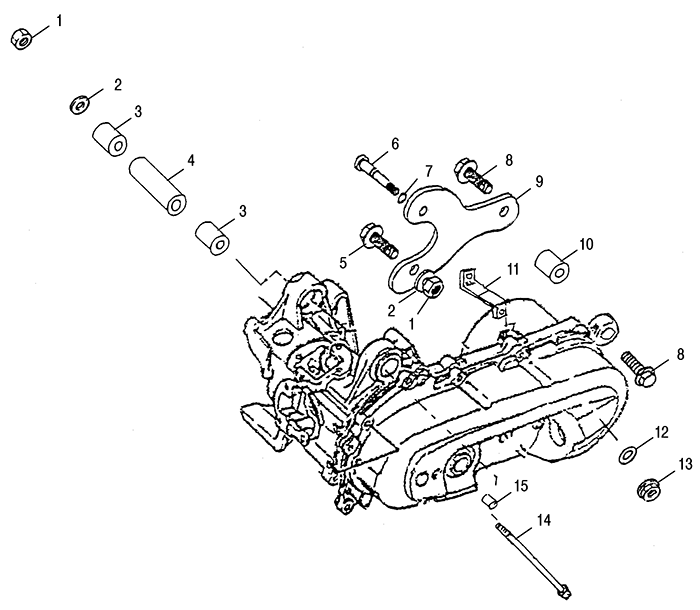

Engine Bracket
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Nut, Hex
450271
|
$2.78 | ||
| 2 |
Washer
450286
|
|||
| 3 |
Bushing, Rubber, Front
450284
|
$8.77 | ||
| 4 |
Tube, Fixed, Front
450283
|
$8.55 | ||
| 5 |
Bolt, Hex
450270
|
$3.51 | ||
| 6 |
Shaft, Fixed
450266
|
$8.40 | ||
| 7 |
O-Ring
450709
|
$1.86 | ||
| 8 |
Bolt, Hex, Washer Face
450684
|
$8.99 | ||
| 9 |
Bracket, Engine
450269
|
$24.60 | ||
| 10 |
Bushing, Rubber
450132
|
$6.39 | ||
| 11 |
Plate, Fixed, Oil Tank
450287
|
$4.64 | ||
| 12 |
Washer
450192
|
$0.44 | ||
| 13 |
Nut, Flange
450268
|
$1.40 | ||
| 14 |
Bolt, Hex
450285
|
$8.99 | ||
| 15 |
Collar
450278
|
$8.55 |
