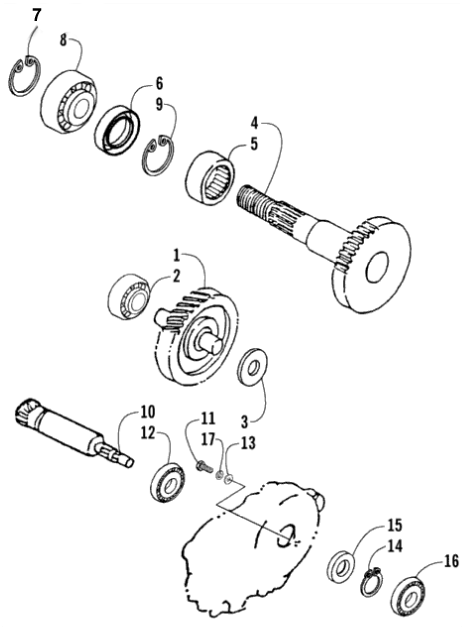

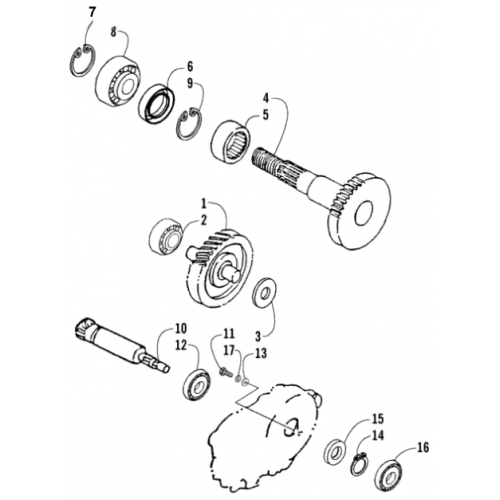

Transmission Assembly
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Axle, Main
3301-120
|
$87.71 | ||
| 2 |
Bearing, Radial Ball
3301-414
|
$18.03 | ||
| 3 |
Washer
3301-346
|
$1.32 | ||
| 4 |
Axle, Drive
3301-122
|
$91.22 | ||
| 5 |
Bearing, Needle
3301-422
|
$40.78 | ||
| 6 |
Seal, Oil
3301-440
|
$2.57 | ||
| 7 |
Circlip
3301-383
|
$8.77 | ||
| 8 |
Bearing, Radial Ball
3301-412
|
|||
| 9 |
Circlip
3301-382
|
$1.32 | ||
| 10 |
Gear, Primary Drive
3301-119
|
$55.25 | ||
| 11 |
Screw, Cap
3301-305
|
$1.55 | ||
| 12 |
Bearing, Radial Ball
3301-410
|
|||
| 13 |
Washer
3301-341
|
$1.32 | ||
| 14 |
Circlip
3301-378
|
$2.64 | ||
| 15 |
Seal, Oil
3301-435
|
$6.14 | ||
| 16 |
Bearing, Radial Ball
3301-416
|
$8.77 | ||
| 17 |
Washer, Spring
3301-360
|
$1.32 |
