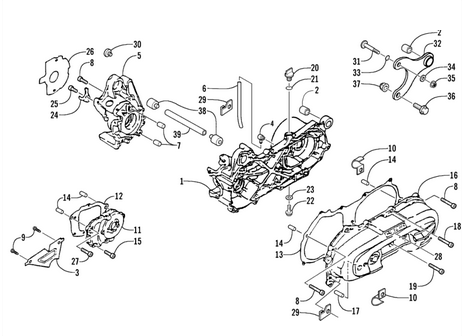

Crankcase Assembly
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Crankcase - Left
3301-006
|
$181.11 | ||
| 2 |
Bushing, Rubber
3301-427
|
$4.39 | ||
| 3 |
Plate, Cover
3301-011
|
$4.83 | ||
| 4 |
Fitting, Breather Hose
3301-057
|
$1.32 | ||
| 5 |
Crankcase - Right
3301-001
|
$119.72 | ||
| 6 |
Hose, Breather
3301-480
|
$3.85 | ||
| 7 |
Pin, Dowel
3301-365
|
$2.19 | ||
| 8 |
Screw, Cap
3301-292
|
$1.32 | ||
| 9 |
Screw, Self-Tapping
3301-321
|
$1.32 | ||
| 10 |
Clamp
3301-013
|
$1.32 | ||
| 11 |
Cover, Mission
3301-097
|
$35.96 | ||
| 12 |
Gasket, Mission Cover
3301-098
|
$5.70 | ||
| 13 |
Gasket, Crankcase Cover
3301-014
|
$16.22 | ||
| 14 |
Pin, Dowel
3301-364
|
$1.32 | ||
| 15 |
Screw, Cap
3301-289
|
$5.70 | ||
| 16 |
Cover, Crankcase - Left
3301-010
|
$122.78 | ||
| 17 |
Shaft, Idler
3301-426
|
$1.75 | ||
| 18 |
Screw, Cap
3301-290
|
$1.32 | ||
| 19 |
Screw, Cap
3301-293
|
$1.75 | ||
| 20 |
Plug, Oil
3301-037
|
$1.40 |
