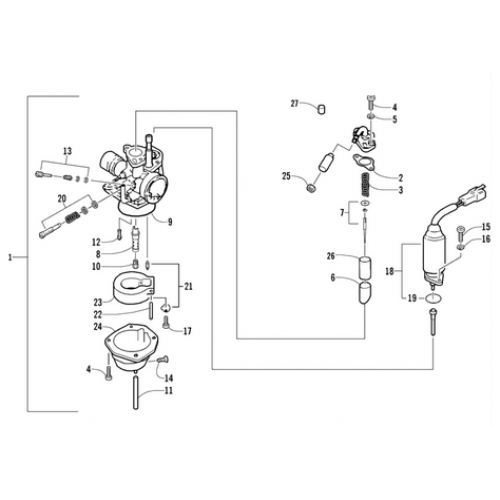

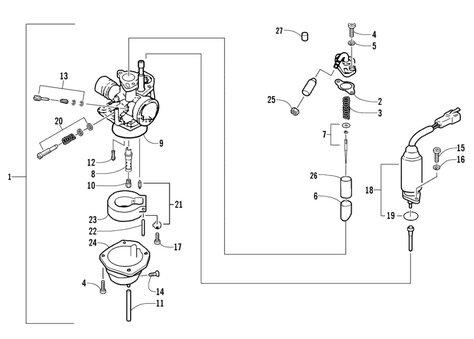

Carburetor Assembly
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 0 |
Plunger Starter
17215-116-000
|
$119.72 | ||
| 1 |
Carburator only no choke assembly
16100-117-00A
|
$131.56 | ||
| 2 |
Gasket, Carburetor
3301-039
|
|||
| 3 |
Spring, Throttle Valve
3301-040
|
|||
| 4 |
Screw
3301-828
|
|||
| 5 |
Washer, Spring
3301-359
|
|||
| 6 |
Valve, Throttle
3301-041
|
|||
| 7 |
Set, Jet Needle
3301-042
|
|||
| 8 |
Needle Jet
3301-043
|
|||
| 9 |
Seal, Float Chamber
3301-044
|
|||
| 10 |
Main Jet
3301-046
|
|||
| 11 |
Tube, Overflow
3301-047
|
|||
| 12 |
Jet, Pilot
3301-048
|
|||
| 13 |
Screw, Air Adjustment
3301-052
|
|||
| 14 |
Plug, Drain
3301-049
|
|||
| 15 |
Screw, Machine
3301-313
|
|||
| 16 |
Washer, Spring
3301-358
|
|||
| 17 |
Screw, Machine
3301-312
|
|||
| 18 |
Choke Assembly - Electric | (Inc. 19)
3301-066
|
|||
| 19 |
O-Ring
3301-299
|
