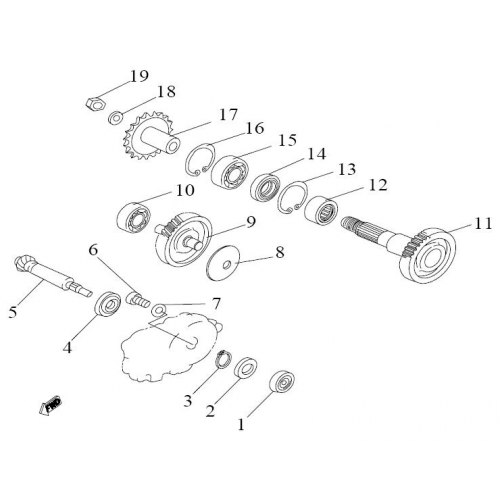

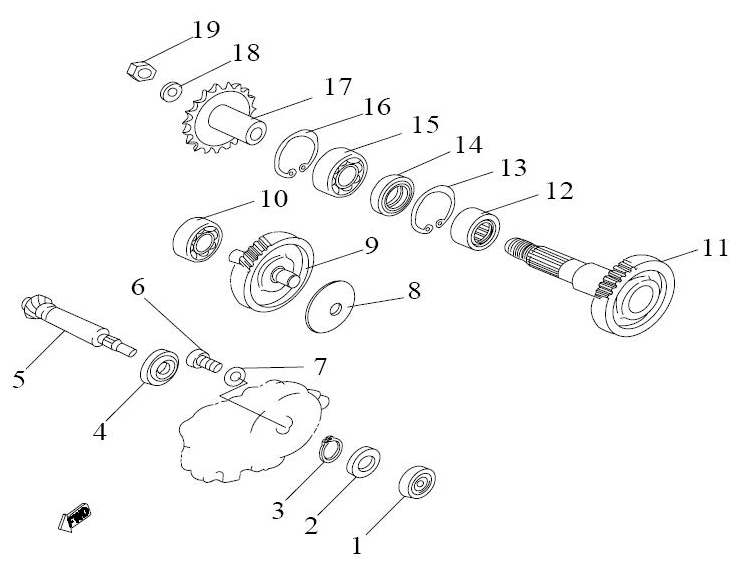

Transmission
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Bearing, Ball
AP96210-638RD
|
$26.74 | ||
| 2 |
Seal, Oil
AP91200-172855
|
$5.30 | ||
| 3 |
Circlip
AP90500-S17
|
$4.23 | ||
| 4 |
Bearing, Ball
AP96210-6003
|
$9.58 | ||
| 5 |
Drive Gear, Primary
AP23610-A2C4-000
|
$166.87 | ||
| 6 |
Hex Socket Bolt
AP91000-06010
|
$3.16 | ||
| 7 |
Washer, Plate
AP90426-061912
|
$2.09 | ||
| 8 |
Washer, Conical Spring
AP94111-126005
|
$6.37 | ||
| 9 |
Main Axle Comp
AP23620-A2C4-000
|
$106.95 | ||
| 10 |
Bearing, Ball
AP96210-6201
|
$19.13 | ||
| 11 |
Gear, Driven
AP23630-A2C4-000
|
$106.95 | ||
| 12 |
Bearing, Needle
AP96160-HMK2515
|
$35.26 | ||
| 13 |
Circlip
AP90500-IRTW32
|
$4.23 | ||
| 14 |
Seal, Oil
AP91200-253560
|
$7.44 | ||
| 15 |
Bearing, Ball
AP96210-6004LU
|
$37.40 | ||
| 16 |
Circlip
AP90500-RTW42
|
$4.23 | ||
| 17 |
Slipper Sprocket, Drive, 428-19T
23800-E01-001
|
$148.29 | ||
| 17 |
Tooth Slipper Sprocket Assembly (NUT NOT INCLUDED)
23800-E01-011
|
$148.29 |
