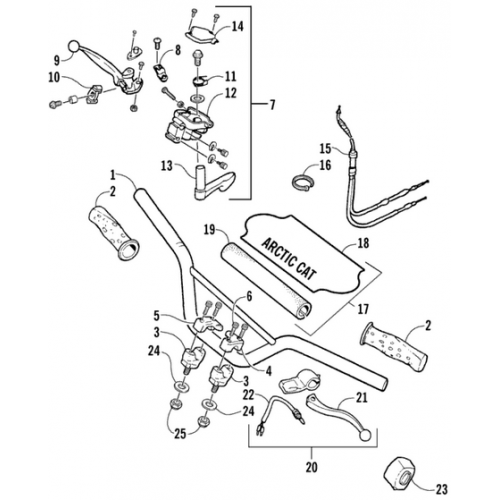

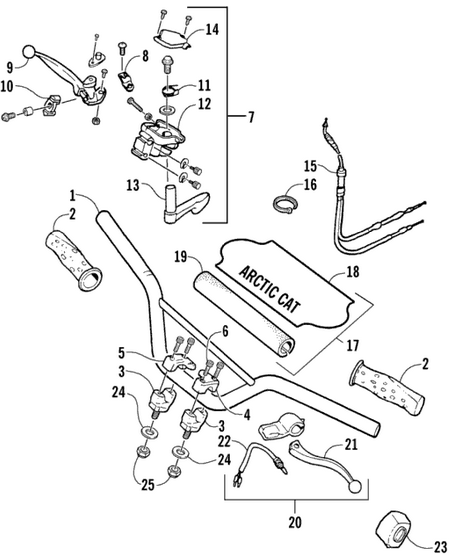

Handlebar Assembly
Change Assembly
# | Product Name | Req'd | Price: | |
---|---|---|---|---|
2 |
Grip, Handlebar
3301-234
|
$12.36 | ||
3 |
Clamp, Handlebar - Bottom
3301-231
|
$12.28 | ||
4 |
Clamp, Handlebar - Left
3301-232
|
$6.14 | ||
5 |
Clamp, Handlebar - Right
3301-233
|
$6.14 | ||
6 |
Screw, Cap
3301-290
|
$1.32 | ||
7 |
Lever Assembly - Right | (Inc. 8-13)
3301-861
|
$67.53 | ||
8 |
Bracket, Throttle Cable
3301-239
|
$5.70 | ||
9 |
Lever, Brake - Right
3301-240
|
|||
10 |
Bracket, Cable
3301-238
|
$7.46 | ||
11 |
Spring, Throttle Lever
3301-244
|
$1.32 | ||
12 |
Bracket, Lever
3301-237
|
$29.82 | ||
13 |
Lever, Throttle
3301-243
|
$16.22 | ||
14 |
Cover, Lever Body
3301-236
|
$10.09 | ||
15 |
Cable, Throttle
3301-555
|
|||
16 |
Cable Tie
3301-465
|
|||
17 |
Pad, Handlebar - Assembly | (Inc. 18-19)
3301-457
|
|||
18 |
Pad, Handlebar - Assembly
3301-457
|
|||
19 |
Pad, Handlebar
3301-459
|
|||
20 |
Lever Assembly - Left | (Inc. 21-22)
3301-242
|
$61.40 | ||
21 |
Lever, Brake - Left
3301-241
|
