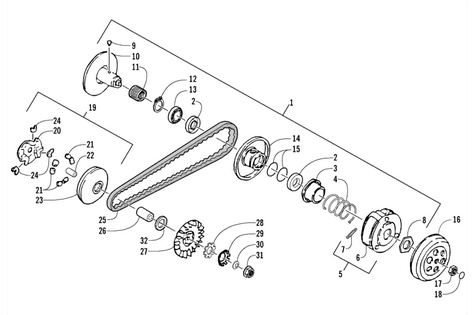

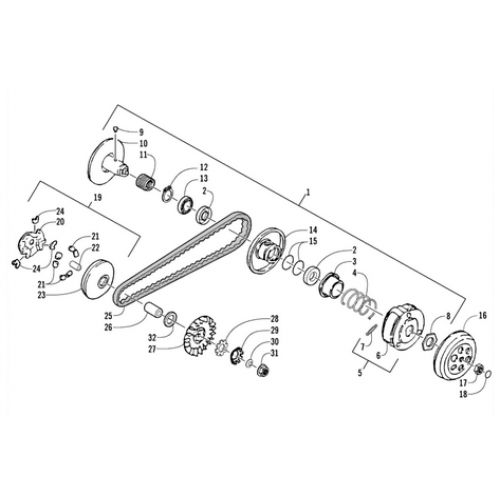

Clutch Assembly
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Driven Face Assembly | (Inc. 2-15)
3301-099
|
$211.81 | ||
| 2 |
Seal, Oil
3301-442
|
$6.58 | ||
| 3 |
Seat, Secondary Spring
3301-118
|
$4.83 | ||
| 4 |
Spring, Compression
3301-117
|
$1.32 | ||
| 5 |
Weight Set, Clutch | (Inc. 6-7)
3301-112
|
$8.77 | ||
| 6 |
Carrier, Clutch Weight
3301-110
|
$52.18 | ||
| 7 |
Spring
3301-111
|
|||
| 8 |
Nut
3301-277
|
$4.83 | ||
| 9 |
Pin, Guide
3301-116
|
$1.75 | ||
| 10 |
Face, Fixed Driven
3301-114
|
|||
| 11 |
Bearing, Needle
3301-420
|
|||
| 12 |
Circlip
3301-380
|
$1.16 | ||
| 13 |
Bearing, Radial Ball
3301-417
|
$27.57 | ||
| 14 |
Face, Movable Driven
3301-115
|
|||
| 15 |
O-Ring
3301-302
|
$2.63 | ||
| 16 |
Cover, Clutch Carrier
3301-100
|
|||
| 17 |
Nut
3301-325
|
|||
| 18 |
O-Ring
3301-298
|
$3.09 | ||
| 19 |
Drive Face Assembly | (Inc. 20-24)
3301-102
|
|||
| 20 |
Plate, Cam
3301-105
|
$4.83 |
